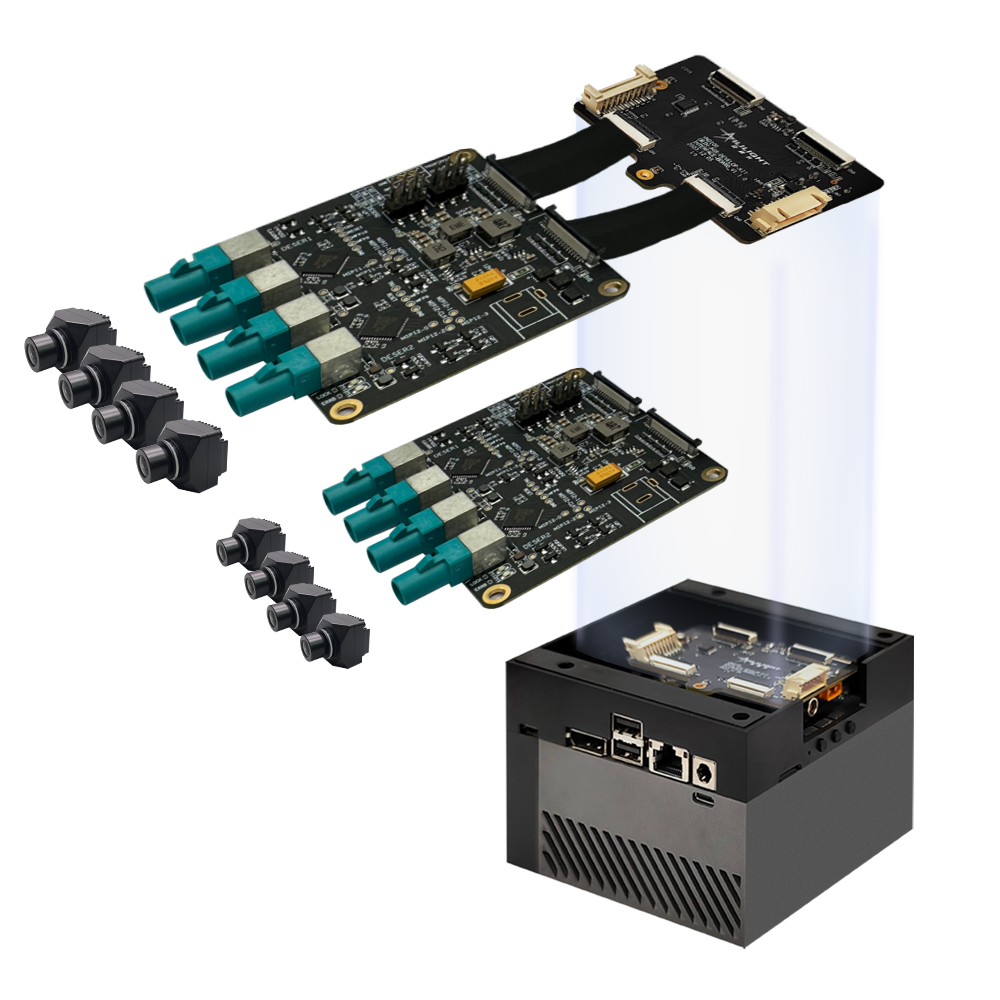

This product is a GMSL-to-MIPI adapter kit specifically designed for the NVIDIA JETSON AGX ORIN development platform. It supports up to 8 channels of GMSL1/2 camera input and is expandable to 16 channels, fully addressing the needs of vision systems in applications such as autonomous driving, robotics, and intelligent manufacturing.

The kit features a modular daughterboard-motherboard design, offering flexible compatibility with various deserializer chips. For time synchronization, when paired with ALG proprietary Synchronization BOX, the kit enables microsecond-level external trigger precision, providing a robust foundation for high-accuracy visual perception and data processing.

ALG offers complete driver support for this kit on JETSON ORIN platforms. When used with ALG Lijian series automotive camera modules, no additional driver development is required. The driver framework supports the standard V4L2 protocol under Linux and is compatible with the latest JetPack releases.

Product Advantages

■ Multi-Channel Input Capability

Supports up to 8 channels of GMSL1/2 camera input for parallel multi-camera data acquisition.

Expandable to 16 channels to meet complex integration requirements.

■ Modular Hardware Design

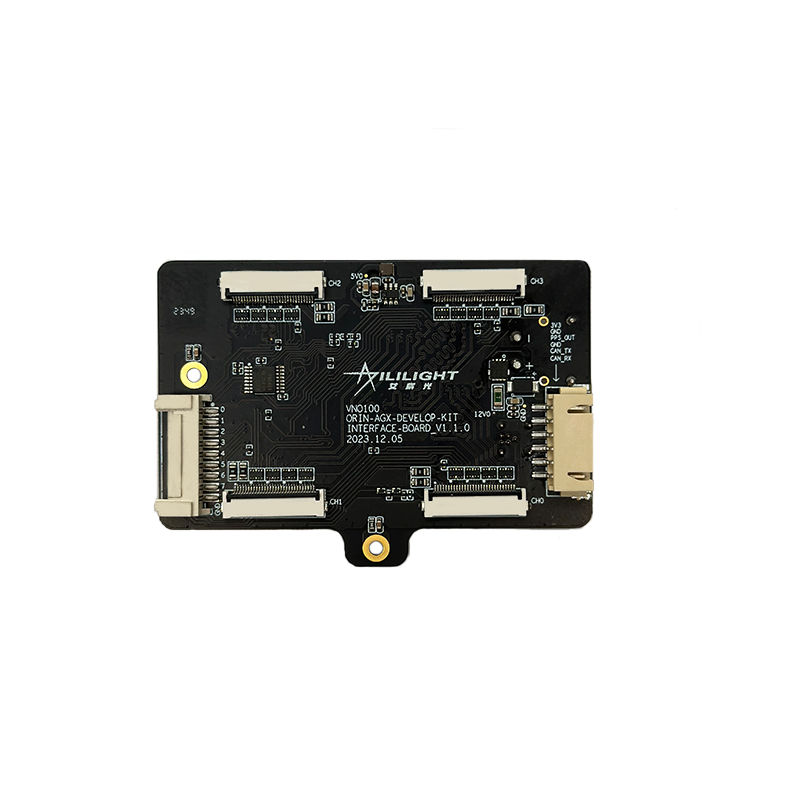

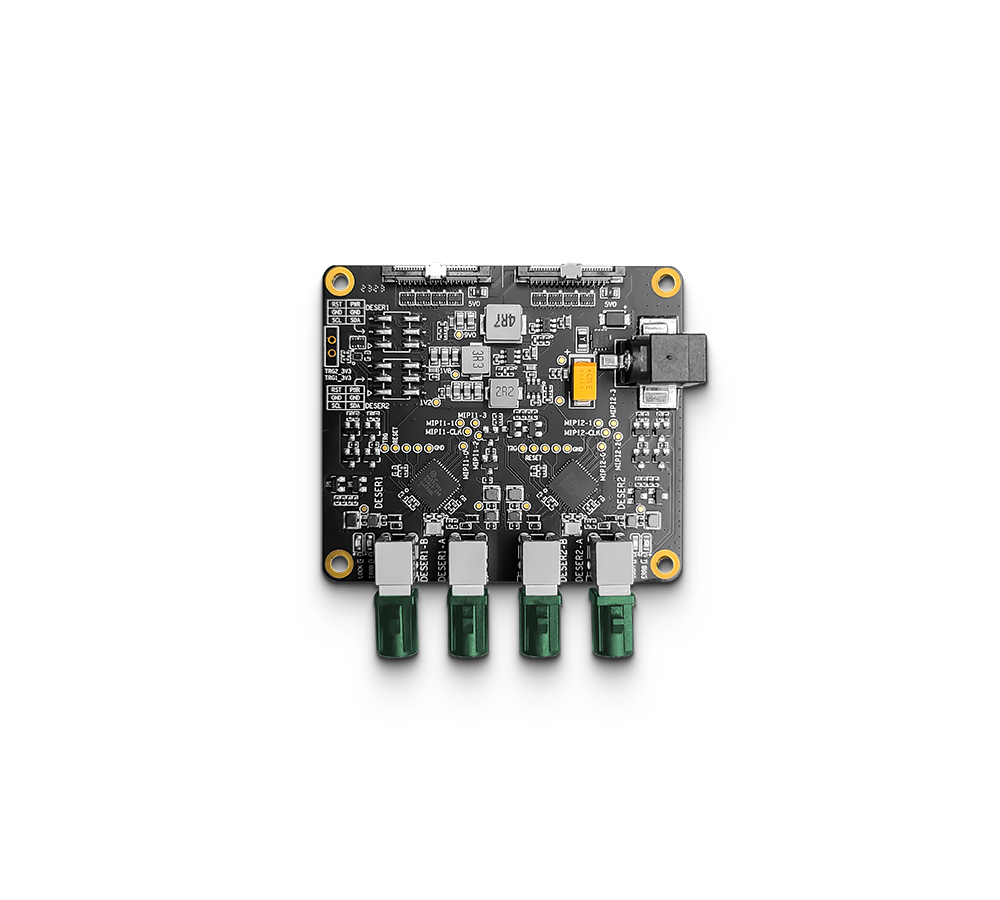

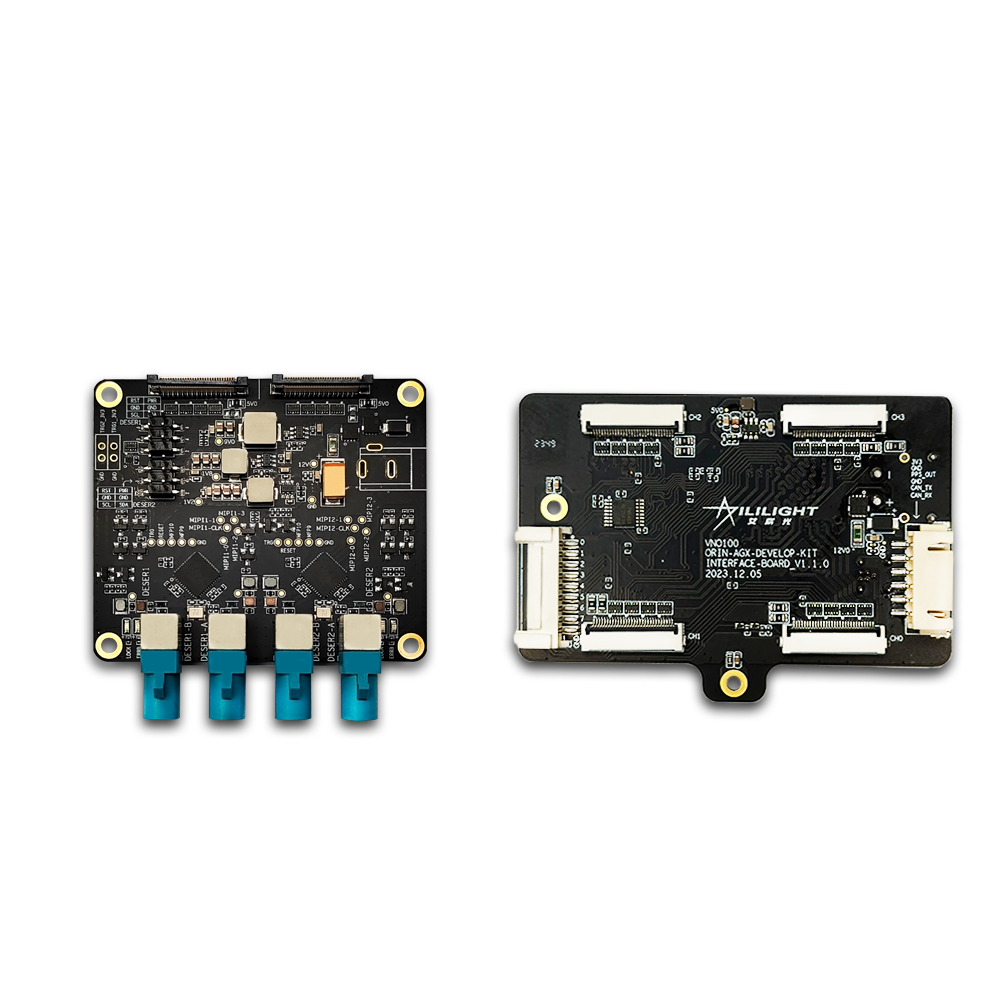

Employs ALG proprietary daughterboard-motherboard structure, supporting multiple deserializer chips (e.g., MAX9296, 96718, 96712, 96722).

Customization available to support additional transmission protocols such as FPD-Link III/IV.

■ Efficient System Integration

Provides full driver adaptation and camera configuration sequences for ALG camera modules; supports the V4L2 protocol under Linux.

Driver framework compatible with third-party cameras, improving development efficiency and flexibility.

■ High-Precision Synchronization

Supports internal and external synchronization modes to ensure consistent multi-channel exposure triggering.

Supports external timestamping via CAN bus; microsecond-level precision achievable when paired with GPS-based synchronization module.

■ Robust Power Supply

Delivers 12V/1A per channel, with total system output up to 96W, supporting stable operation for high-power devices.

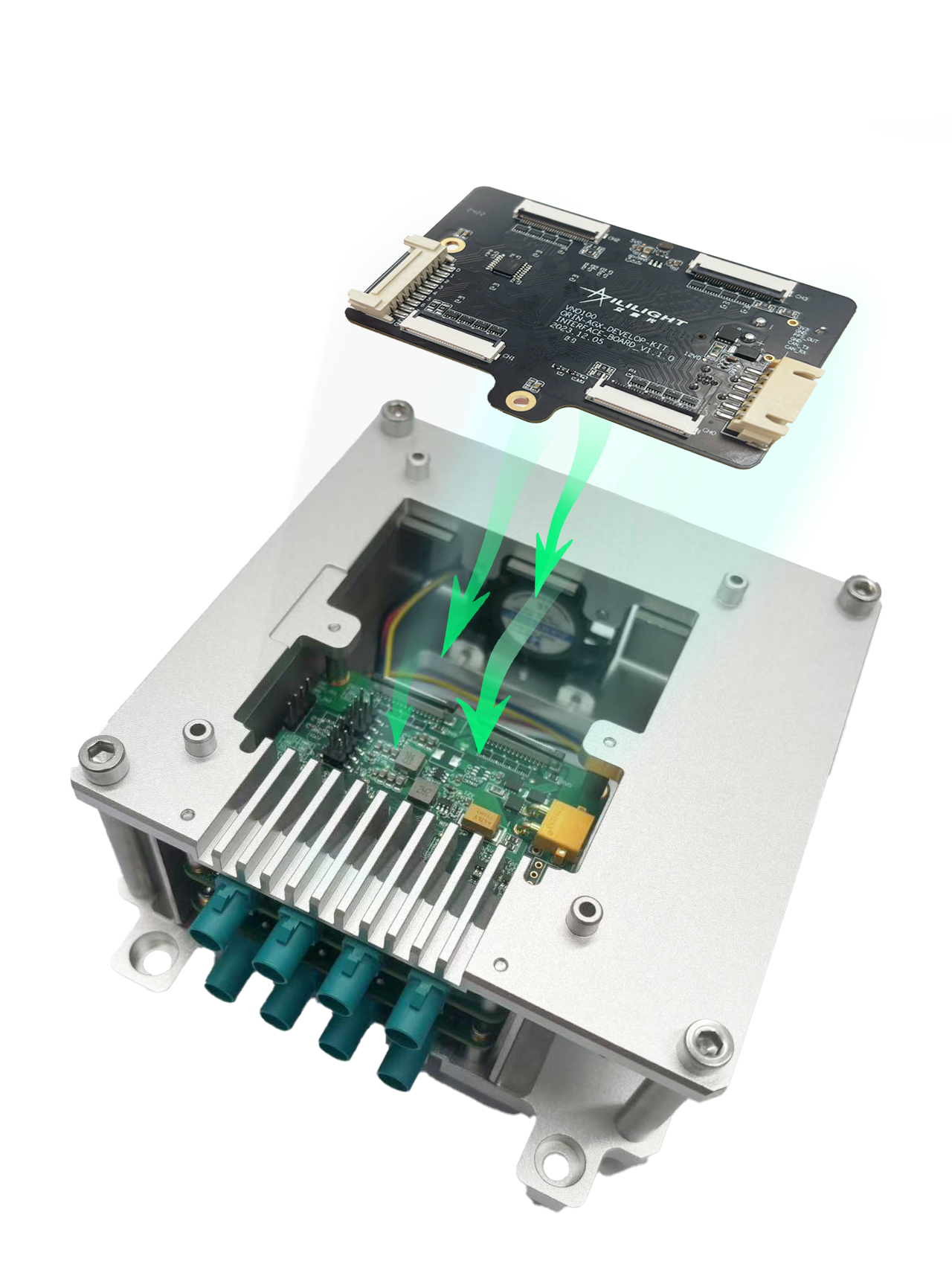

■ Optimized Thermal and Structural Design

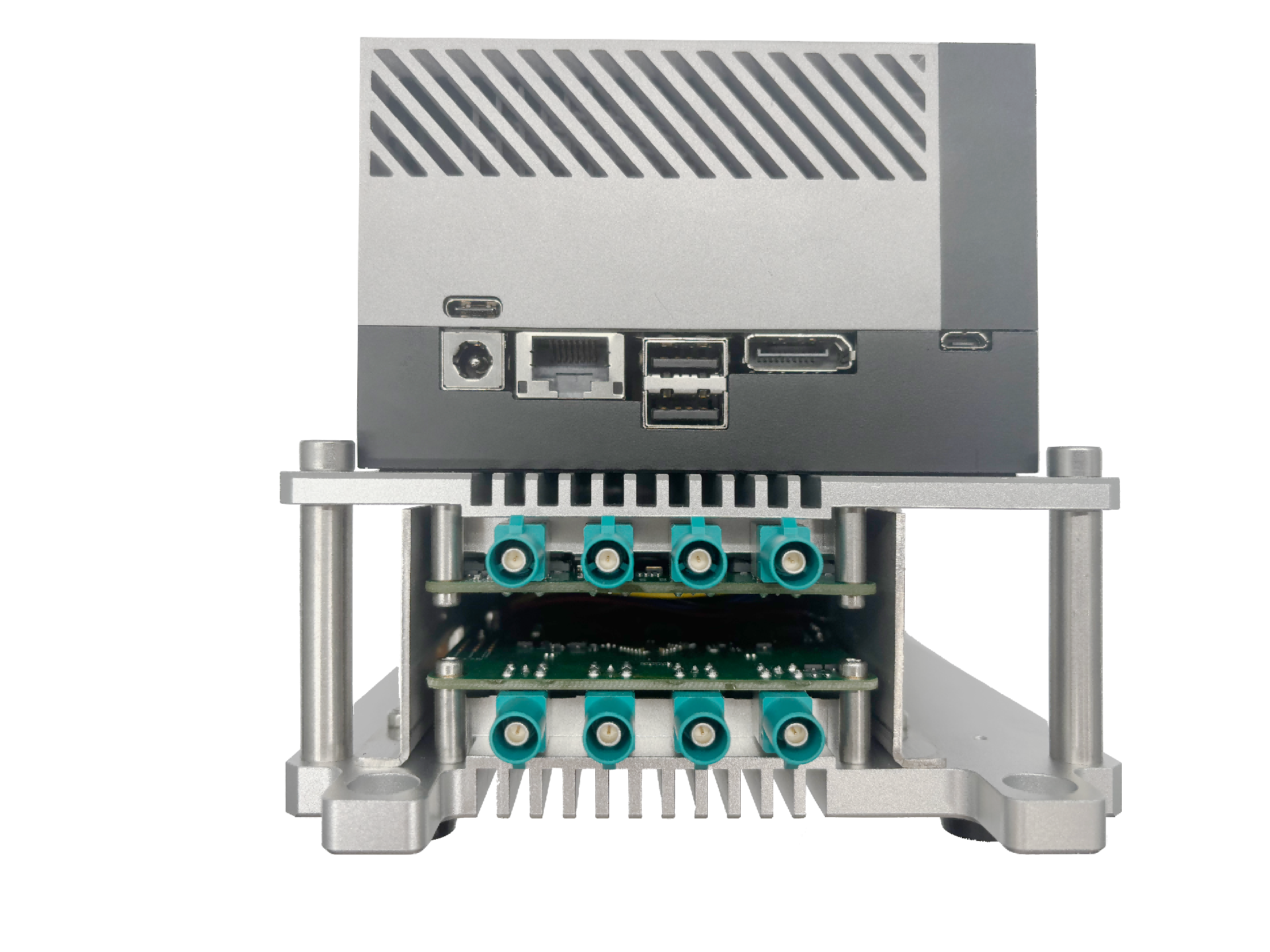

Side-exit cable layout improves assembly convenience and wiring neatness.

Thermal performance optimized for high-power environments, ensuring long-term operational stability.

Typical Applications

■ Robotic Vision Systems

Multi-channel vision input solution for autonomous navigation and object recognition.

■ Industrial Visual Inspection

Multi-station coordinated imaging with high-frequency trigger capture and analysis, enhancing automation efficiency.

■ Intelligent Traffic Monitoring

Centralized access for traffic cameras at high-speed intersections and multi-lane roads, supporting stable long-distance wiring.

■ Autonomous Driving Systems

Synchronized acquisition from multiple high-definition cameras to build a full 360-degree visual perception system.
