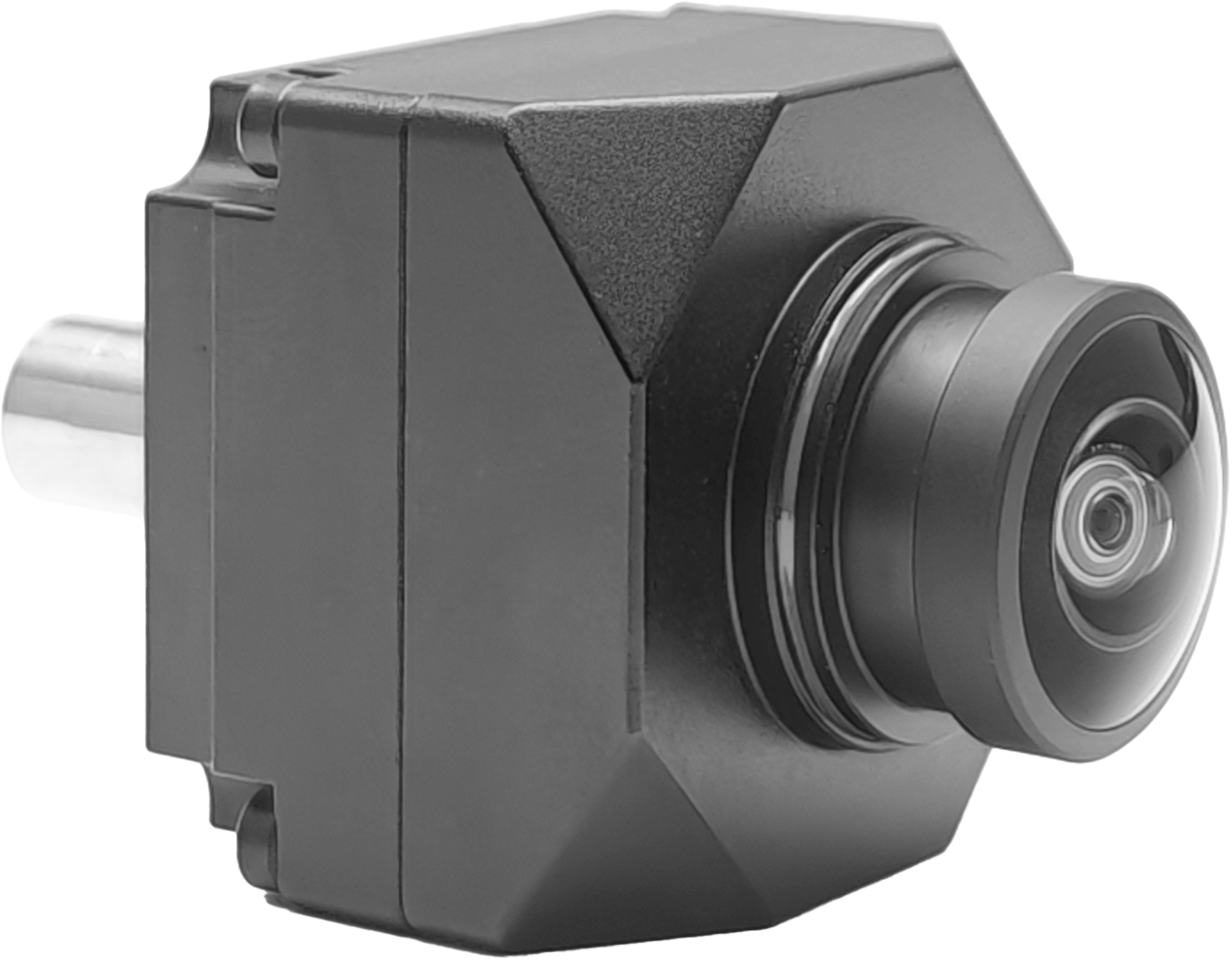

The 3MP Sony IMX623 Series is a 3-megapixel high-performance automotive camera module featuring Sony's automotive-grade IMX623 image sensor and GMSL2 protocol transmission. With a dynamic range exceeding 120dB, it captures low-noise images under extreme lighting conditions (intense sunlight to low-light). Multi-element aspherical glass lenses ensure clarity in complex scenes, while the built-in ISP enables real-time image processing including noise reduction and color calibration. Combining these capabilities with robust design, this module is ideal for L2-L4 advanced autonomous driving side/surround-view solutions.

Product Advantages

■ High Resolution

Up to 3 Megapixel (1920×1536) resolution, capturing clear and detailed images, making it a cost-effective choice for autonomous driving and ADAS applications.

■ Excellent Low-Light Performance

Optimized for low-light imaging, providing clear visuals even in dark environments.

■ HDR Technology

Supports over 120dB high dynamic range, meeting the lighting requirements of most urban driving scenarios.

■ Wide Operating Temperature Range

Designed for demanding automotive environments, operating reliably in temperatures ranging from -40°C to 85°C, ensuring functionality in extreme weather conditions.

■ GMSL 2 High-bandwidth Data Transmission

Utilizes GMSL 2(Gigabit Multimedia Serial Links) protocol for transmission, providing high-bandwidth and low-latency multimedia data communication, with the advantages of long-distance, anti-interference and enhanced reliability.

■ High-Reliability Design

Features a rugged enclosure and protective design, offering resistance to vibration, dust, and water, in compliance with automotive-grade quality standards.

■ LFM

Support LED Anti-Flicker function.

■ Multi-Camera Sensor Fusion

Support external synchronization, enables time-sync with LiDAR, millimeter-wave radar, and other sensors.

Typical Applications

■ Advanced Driver Assistance Systems (ADAS)

Enables object detection and analysis of the vehicle’s surroundings, including pedestrian detection, vehicle detection, and lane departure warning.

■ Autonomous Driving Systems

Provides high-precision environmental perception image data to support fully autonomous driving solutions.
