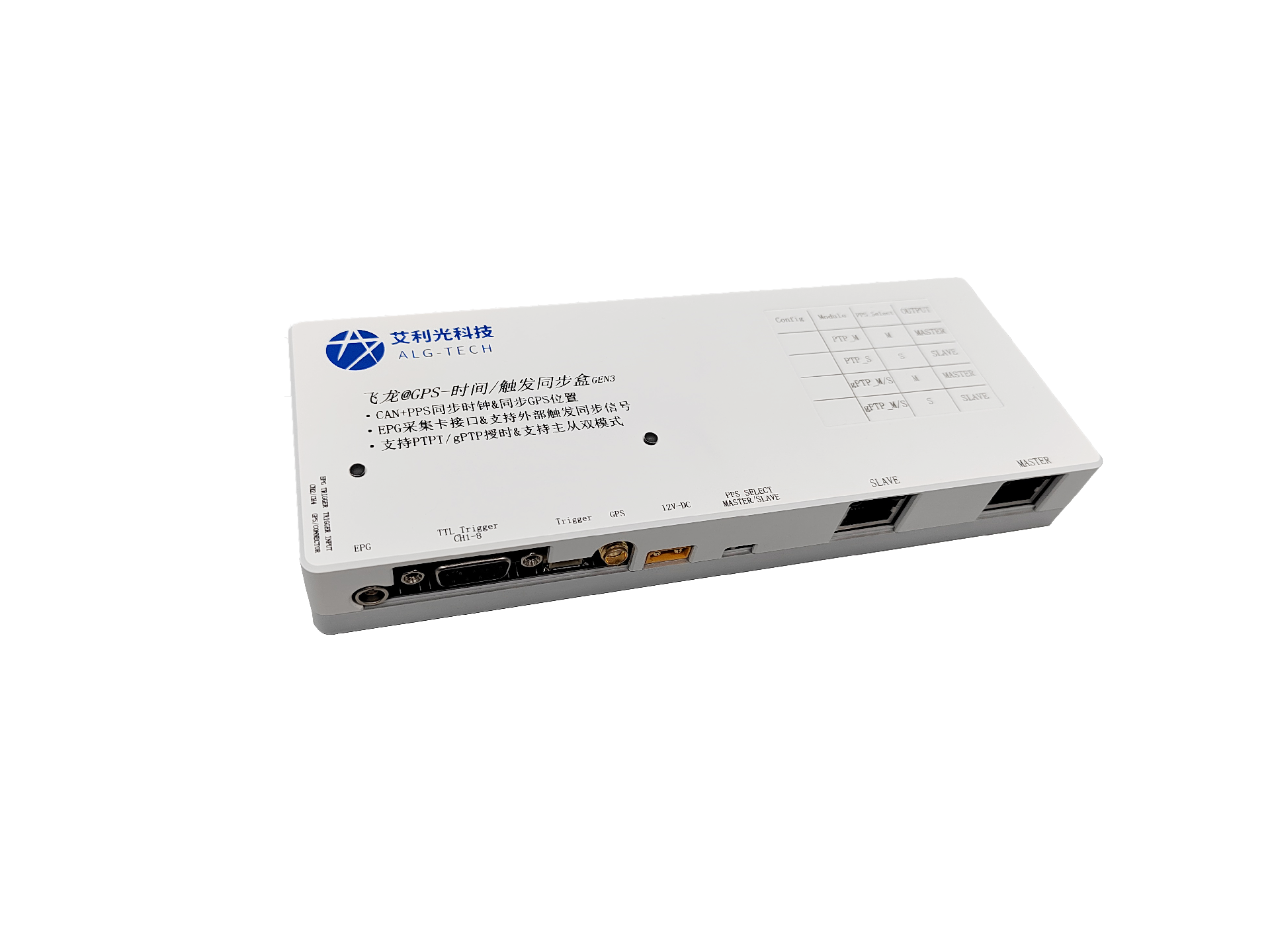

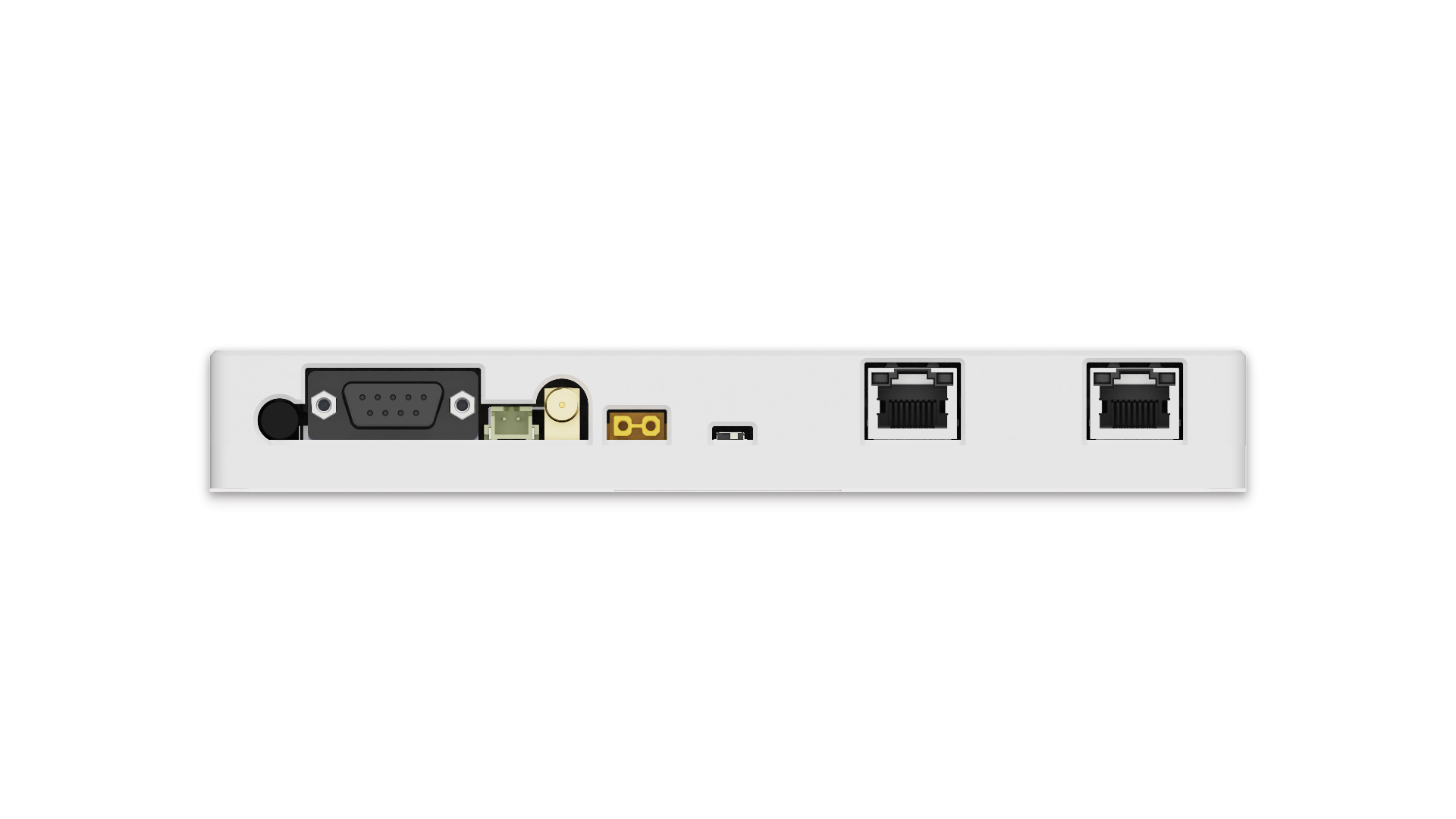

The GPS-Sync/Trigger Module is a dedicated device for time/trigger synchronization for acquisition cards. It is stable, reliable, lightweight, and widely compatible. Connected to the acquisition card via the EPG cable, it supports both internal and external synchronization modes. Internal synchronization offers eight channels of 10 - 120HZ signals, while external synchronization can receive external signals. The device has built - in GPS access and is designed for autonomous driving synchronization and timing.

Product Advantages

■ High-Precision GPS Navigation

Supports PPS/GPRMC signals and GPS latitude/longitude positioning data acquisition.

■ Seamless Timing/Synchronization Integration

Seamlessly interfaces with PCIe capture cards, enabling PPS + CAN hybrid timing synchronization with accuracy within 20μs.

■ External Trigger & Multi-Channel Output

Supports external trigger input with frequency multiplication/division, outputs 8-channel trigger signals at varying frequencies, achieving synchronization accuracy <200ns.

■ PTP Master/Slave Mode Support

Features PTP/gPTP Master/Slave interfaces compatible with both PTP and gPTP timing protocols.

■ Time Source Switching

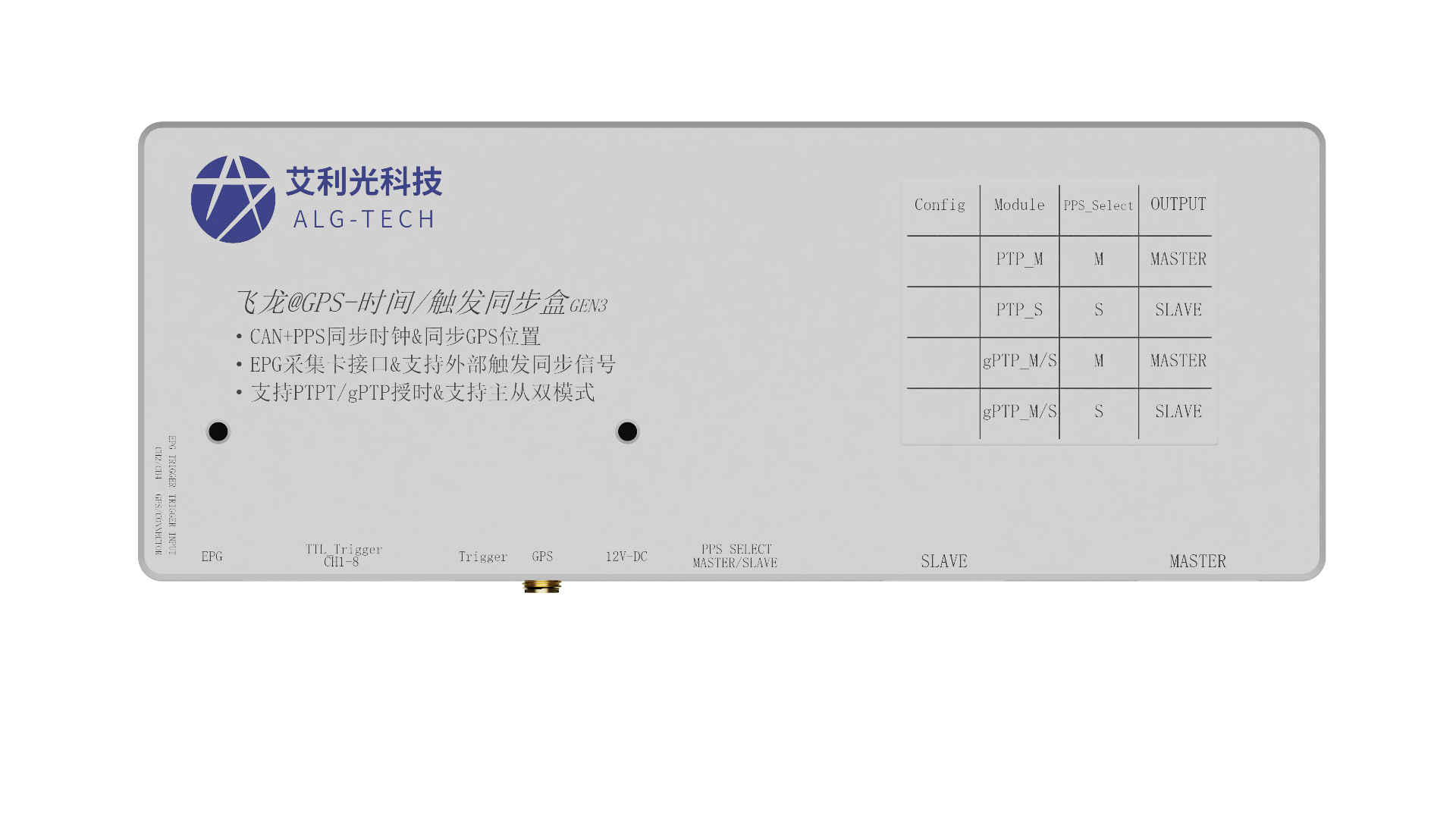

Equipped with a DIP switch for PPS Master/Slave mode switching, enabling seamless time source transition between GNSS and gPTP/PTP Slave.
