A synchronization and time distribution solution is a high-precision time synchronization technology, which has a wide range of applications in multiple fields, including telecommunications, power systems, transportation, and finance.

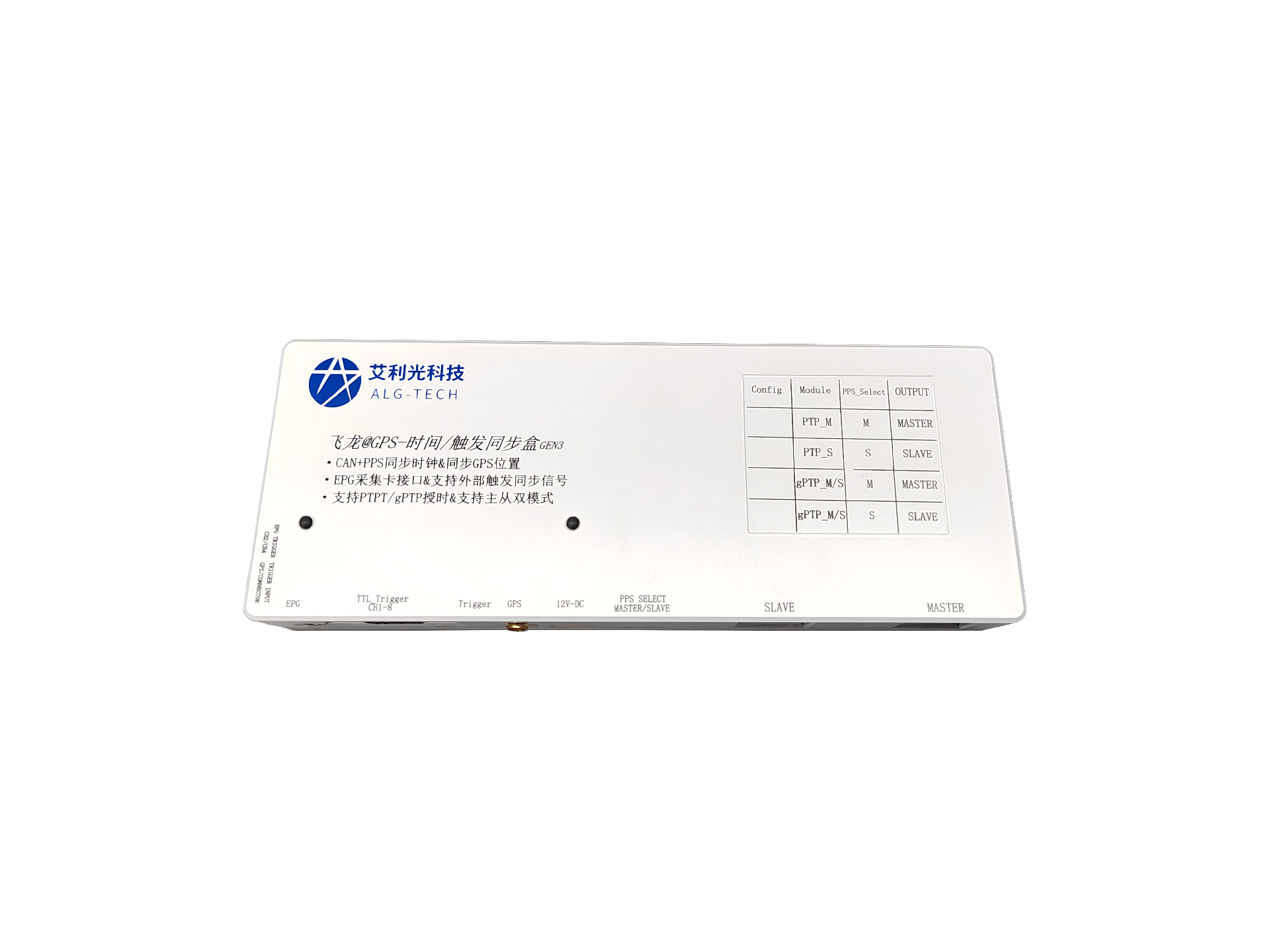

ALG-TECH's synchronization and time distribution solution ensures that devices, systems, or sensors in a network share a unified time standard through various communication protocols (such as PTP/gPTP), thereby enabling precise collaborative operation and data synchronization among devices in multiple fields, including industrial automation, intelligent manufacturing, and communication networks.
■ GPS Precision Navigation System: Compatible with PPS/GPRMC signals, it acquires precise GPS latitude and longitude positioning data.
■ Precision Synchronization Timing Solution: Seamlessly integrated with PCIe acquisition cards, it enables combined PPS and CAN timing, ensuring timing accuracy within 20 microseconds.
■ External Trigger and Multi-Channel Synchronized Output:The system supports external trigger signal input and features frequency multiplication and division functions. It can output 8 channels of trigger signals at different frequencies, guaranteeing synchronization accuracy within 200 nanoseconds.
■ PTP Master-Slave Mode Compatibility: Provides PTP/gPTP master-slave interfaces, supporting both PTP and gPTP timing protocols.
■ Flexible Time Synchronization Source Switching: Through the master-slave mode DIP switch for PPS signals, it enables convenient switching between GNSS and gPTP/PTP Slave synchronization sources.
